J A M E S   W A L T E R

S C H I L D R O T H

Forth year design studio

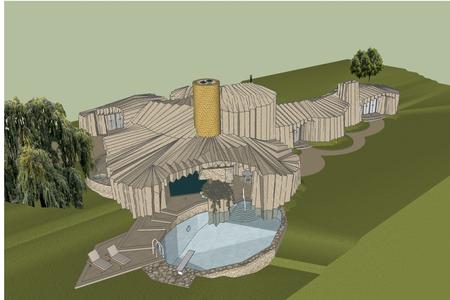

Rendering by Goff Machline in Sketch Up  2017

SITE RELATION CONTRAST    11/1963

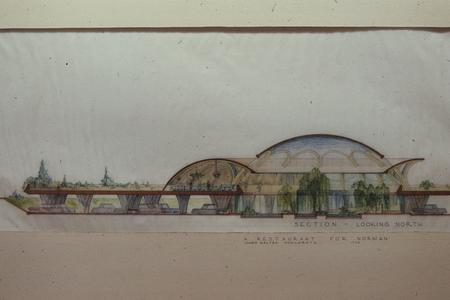

A RESTAURANT FOR NORMAN, OKLAHOMA - February, 1962

STEEL PAVILION 1963

Fifth year design studio.

METHODIST CHURCH FOR NORMAN, OKLAHOMA       APRIL, 1962

PAPER WAD HOUSE -  SOUTH ELEVATION  11/1963

SCHOOL OF ARCHITECTURE

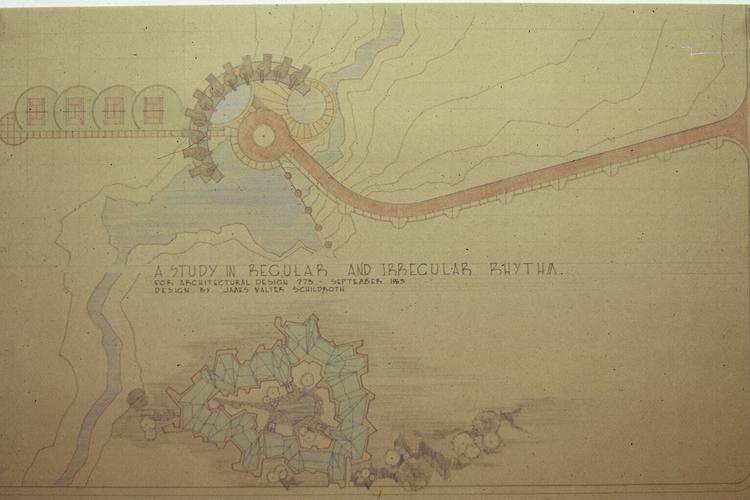

A STUDY IN REGULAR AND IRREGULAR RHYTHM  9/1963  Site Plan Exercise.  Color pencil.

Art School.  My professor challenged me to design out of the Frank Lloyd Wright influence so I did.

THE AMERICAN SCHOOL

MONUMENTALITY & ORCHESTRATION OF MATERIALS

1963 Color pencil on clear print paper.

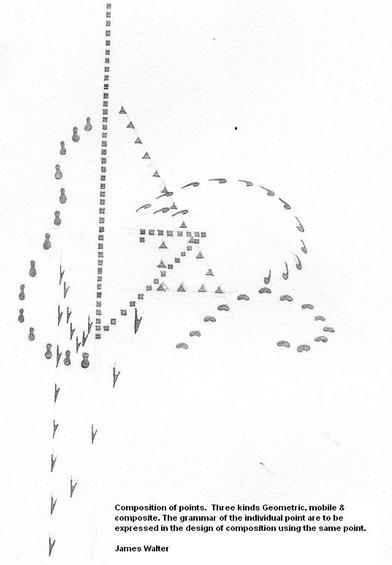

First year, Architecture 8 studio.  Points composition.

Architecture 273   A series of one week design studies.

A STUDY OF THEME, VARIATION, DEVELOPMENT WITH INCIDENT & TERMINAL

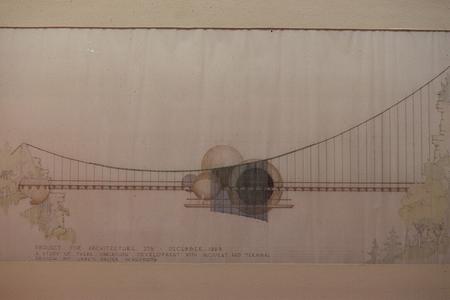

12/1963  Color pencil.  House on a Suspension Bridge.

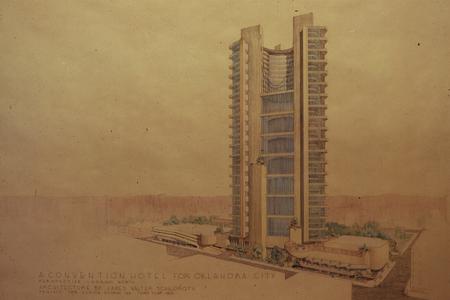

CONVENTION HOTEL FOR OKLAHOMA CITY  1964

Third year design studio.

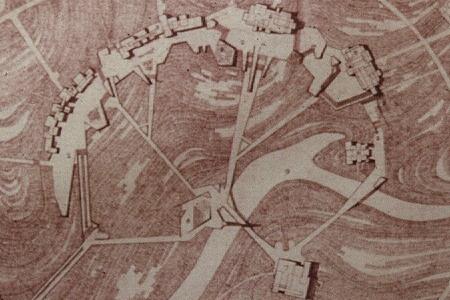

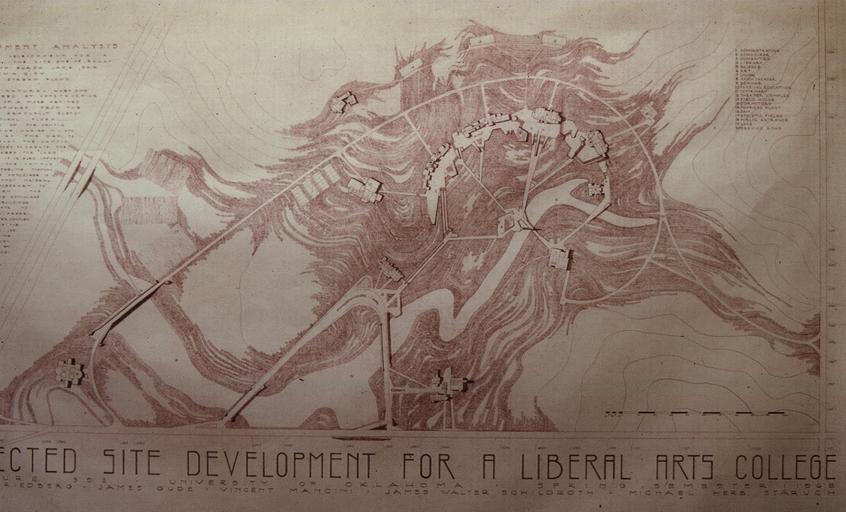

College Campus Master Plan

UNIVERSITY of OKLAHOMA

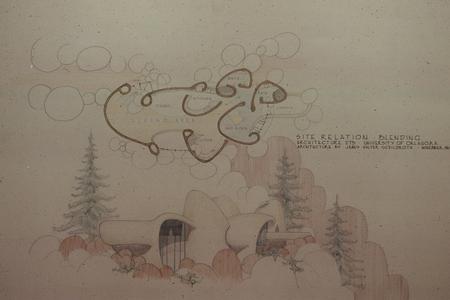

SITE RELATION BLENDING

10/1963  Elevation & Plan -  Color pencil.

Master Plan done first as a team of five.  After the plan we each designed two buildings on the proposed Campus.  I designed the Library and the Art School.

Second year, Second Semester  design studio

UNIVERSITY OF OKLAHOMA
James Walter Schildroth
BACHELOR OF ARCHITECTURE DEGREE 1966

Below is a list of design projects by years.

In September 1961 I started at the University of Oklahoma at Norman.    I received one year of advanced standing for my design work at Taliesin.   All transfer students were required to take the first semester first year course, Architecture 8.  This course taught the basics of organic design process.  This course started by designing points and from this simple beginning, took the development of the student  through more and more complex designs.  All were two dimensional and no buildings were designed until second semester.

I enjoyed this beginning course very much even though I had been designing buildings for several years.  I have some of my design studies from this course and will try and get them copied on this site in the future.

Forth year, Second semester

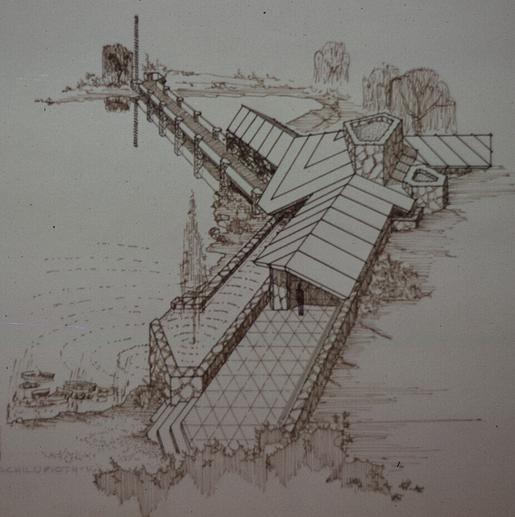

WOOD & STONE PAVILION March 1963  Sepia ink Perspective rendering

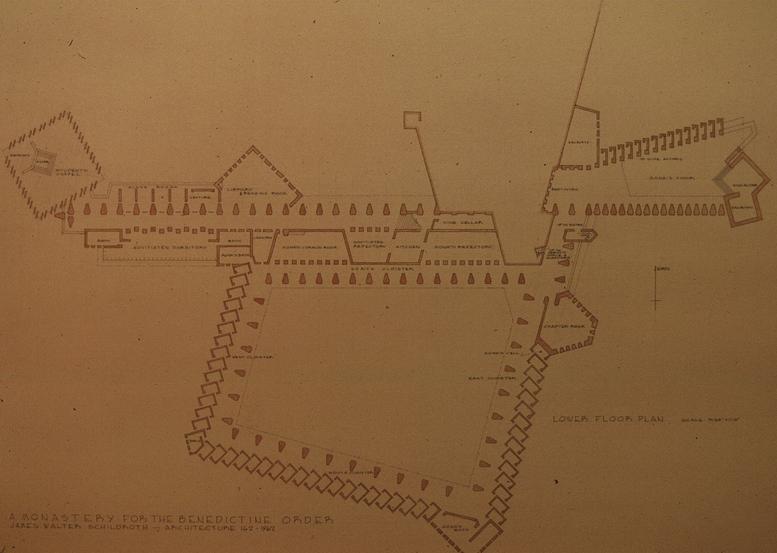

Monastery for the Benedictine Order    10/1963  Color pencil - Lower Floor Plan.

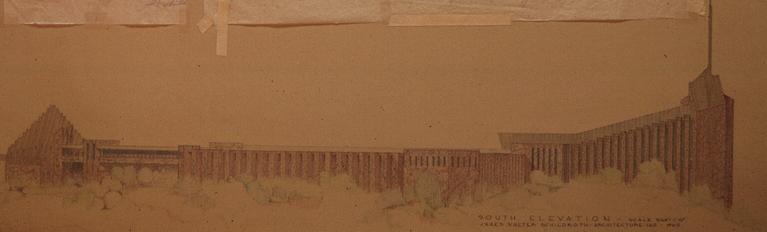

MONASTERY FOR THE BENEDICTINE ORDER  October 10/1963  color pencil  - South elevation

The relation of a structural system to form.  Expanded metal mesh welded in form, then sprayed with shot-crete.

Sorry no drawings for the Library to show.  All on paper rolled up for 40 years.

60 floors.  Single loaded corridor around a 35 story vertical space, glass wall to the south with suspended sun bridges every five floors.  The end suites are two story with sleeping on a balcony.

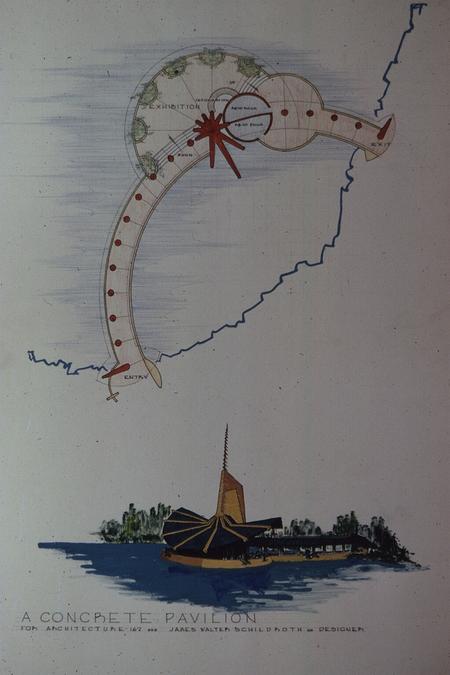

CONCRETE PAVILION  1963
